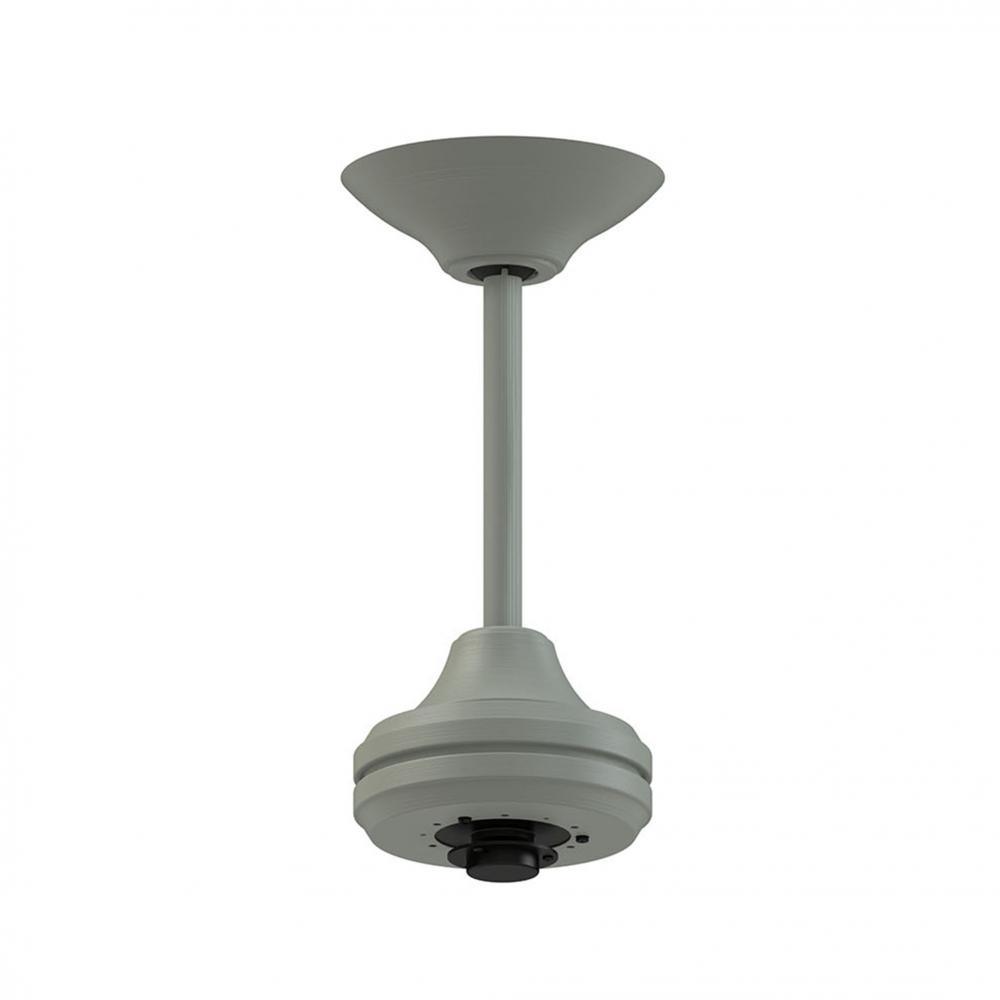

Spitfire DC Motor - AGP (MAD6721AGP)
by Fanimation
The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Specification
Item #
MAD6721AGP
Dimensions
Height: 19.69"
Width: 64.00"
Length: 64.00"
Additional product details
Vendor Item #
MAD6721AGP
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Black
Category
Fan-Multi
Finish
Antique Graphite
Family
Spitfire
Voltage
120 V
Air Flow CFM
12900
Air Flow Efficiency
386
Canopy
8.76 Dia x 2.52 H
Harmonized Codes
8414.51.3000
Light Kit Included
No
Motor Size
153 x 25
Motor Type
DC
Ship Carton Height
10.94
Ship Carton Length
14.37
Ship Carton Width
10.43
Ship Weight
16.65
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
15.17
Airflow Efficiency Low
1049
Airflow Efficiency Medium
880
Avg Airflow Efficiency
376
Avg CFM Energy
7429
Avg Energy Use
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Cap Included
No
Carton Cubic Feet
0.9489
Case Height
10.94
Case Length
14.37
Case Quantity
1
Case Weight Pounds
16.65
Case Width
10.43
CEC Uploaded
Yes
Ceiling To Blade Edge
19.69
Ceiling To Bottom (No Light Kit)
19.69
Ceiling To Bottom (With Light Kit)
21.35
CFM Low
2958
CFM Medium
7355
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.06
Current Draw Medium
0.14
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
12
Exempt from DOE Procedure
No
Fan Energy Star 4
Yes
Housing Diameter
8.07
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Location Rating
Damp
Max Ceiling Slope
27
Max Length
96
Max Width
96
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
112
RPM Low
29
RPM Medium
67
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts High
33
Watts Low
3
Watts Medium
8
Manufactured By
Fanimation
Other Details:
- 12900 Cfm On High
- 16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features
- Compatible with most smart home devices using the Fanimation fanSync WiFi App
- Energy Star Most Efficient 2022
- Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)
- Tr305 Handheld Remote With 23a Battery Included
