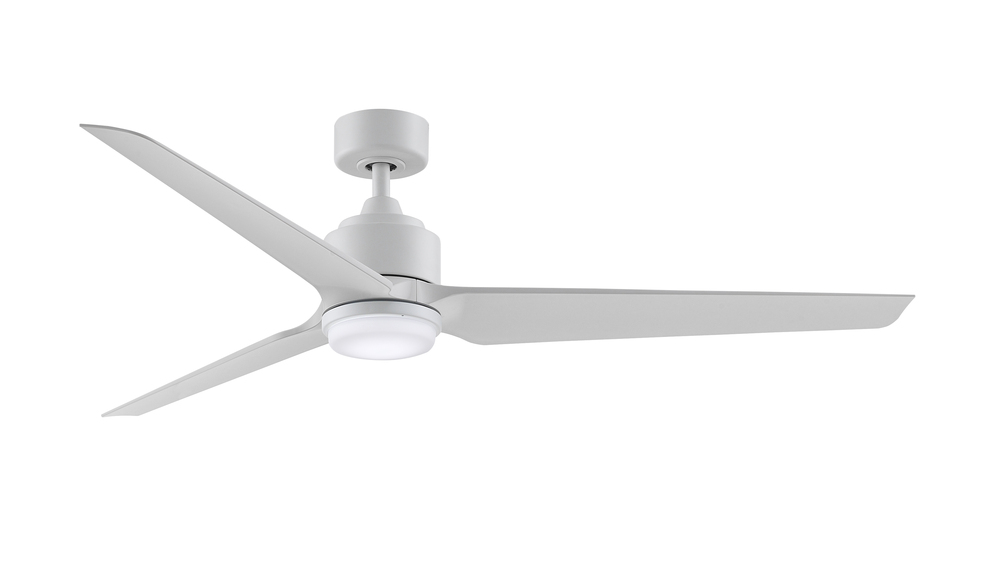

TriAire Custom Motor - MWW (MAD8515MWW)
by Fanimation
The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
10387 Cubic Feet per Minute
Electricity Rate
30 Watts (excluded lights)
Airflow Efficiency
342 Cubic Feet Per Minute Per Watt
Product Specification
Item #
MAD8515MWW
Dimensions
Height: 15.92"
Width: 64.00"
Length: 64.00"
Additional product details
Vendor Item #
MAD8515MWW
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
White
Style
Traditional
Option
Energy Star
, Wet Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
9w
Category
Fan-Multi
Finish
Matte White
Option
Wet
Family
TriAire Custom
Voltage
120 V
Additional Info
8666 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
, ENERGY STAR Most Efficient 2020
, Set of 3 Wet Rated blades with multiple finish options and 18 watt LED light kit (sold separately)
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM
10387
Air Flow Efficiency
342
Amperage
0.43
Blade Pitch
14
Canopy
5.75 Dia x 2.57 H
Diameter
7.09
Down Rod Included
8
Electricity Used
30
Harmonized Codes
8414.51.3000
Length
64, 72, 84
Light Kit Included
No
Max Length
84
Max Width
84
Motor Fan Speed
16
Motor RPM
100
Motor Size
153 x 25
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
8.35
Ship Carton Length
15.94
Ship Carton Width
8.86
Ship Weight
15.08
Sold By
Each
Warranty
Limited Lifetime
Weight
13.67
Airflow Efficiency Low
723
Airflow Efficiency Medium
757
Avg Airflow Efficiency
378
Avg CFM Energy
7827
Avg Energy Use Watts
21
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
8
Canopy Diameter
5.75 Dia
Canopy Height
2.57 H
Cap Included
Yes
Carton Cubic Feet
0.68
Cartons Per Unit
1
Case Height
8.35
Case Length
15.94
Case Quantity
1
Case Weight Pounds
15.08
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
16.42
Ceiling To Bottom
15.92
, 18.12
CFM Low
1734
CFM Medium
6891
Compatible Accessories
CCK8002MWW, DR1-CPMW, DR1SS-12MWW, DR1SS-18MWW, DR1SS-24MWW, DR1SS-36MWW, DR1SS-48MWW, DR1SS-60MWW, DR1SS-72MWW, SCB1-52
Compatible Blades
BPW8515-64BLW, BPW8515-64DWAW, BPW8515-64MWW, BPW8515-64SLW, BPW8515-64WEW, BPW8515-72BLW, BPW8515-72DWAW, BPW8515-72MWW, BPW8515-72SLW, BPW8515-72WEW, BPW8515-84BLW, BPW8515-84DWAW, BPW8515-84MWW, BPW8515-84SLW, BPW8515-84WEW
Compatible Light Kits
LK8514MWW
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.43
Current Draw Low
0.05
Current Draw Medium
0.14
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
8
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
7.09
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
30
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
100
RPM Low (II)
28
RPM Medium (IV)
66
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
2
Watts Medium
9
Wet Rated
Yes
Manufactured By
Fanimation
Other Details:
- 8666 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
- Energy Star Most Efficient 2022
- Set Of (3) Wet Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
- Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
