10W LED Under Cabinet Light Bar; 18 inches in length; 3000K; 860 Lumens; 120V
Image may not reflect selected features
/vendors/81/large/63-700.jpg
additional image
additional image
additional image
additional image
additional image
additional image

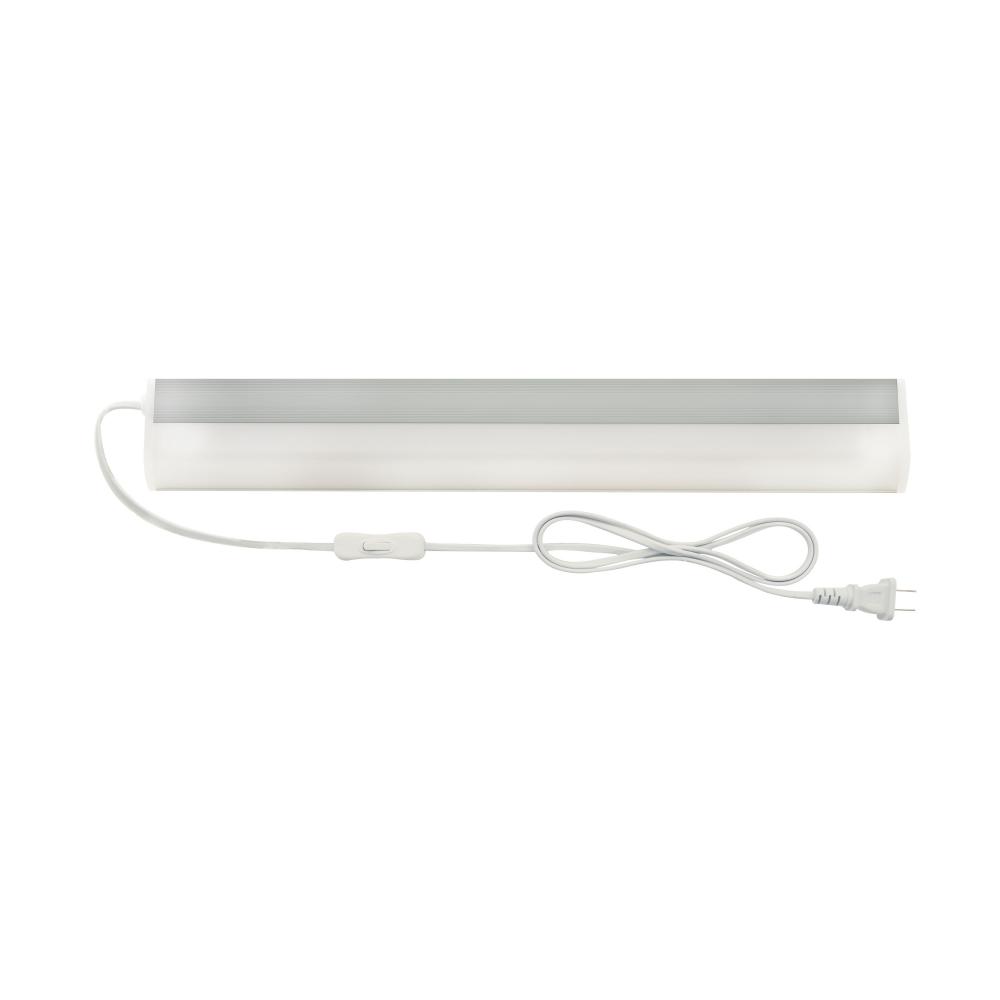

10W LED Under Cabinet Light Bar; 18 inches in length; 3000K; 860 Lumens; 120V (63/700) by Nuvo
10W LED Under Cabinet Light Bar; 18 inches in length; 3000K; 860 Lumens; 120V
Product Specification
Item #
63/700
Dimensions
Height: 0.75"
Width: 2.63"
Additional product details
Vendor Item #
63/700
Category
Undercabinet
Subcategory
LED Undercabinet Lights
Finish
White
Style
Traditional
Option
LED , Prop 65
Lumens
801-1100
Kelvin
2501-3000
Category
Under Cabinet & Cove
Sub Category
Linear Strip
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Non-Dimmable
Each Height
1.97
Each Length
18.7
Each Width
2.76
Length
18.11
Lumens
860L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Wire Length
59
Amps
0.083A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
110
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Plug In
Country Of Origin
China
CRI
80
Each Cube
0.0588
Each Quantity
1
Efficacy
86.00 LPW
FCC Compliant
Yes
Feature 1
The height is under one inch, allowing for easy installation
Feature 2
The polycarbonate lens is durable and softens light output
Feature 3
Simple mounting through the use of wood screws or adhesive tape
Feature 4
No additional wiring required -- plug into an existing 120-volt outlet
Feature 5
The aluminum housing is light and durable
Feature 6
Built-in on/off switch for simple lighting control
Finish Family
White
Incandescent Equivalent
60W
Includes
Wood Screws and 2 White Foam Adhesive Mounting Strips
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
Satco's 63-700 LED multi-purpose light bar offers ease of installation and our most advanced LED technology for countertops, shelves, workbenches, and any craft or workspace. This 10-watt under cabinet light bar makes it easier to light larger areas, a
Material
Aluminum / Polycarbonate (PC)
Mounting Procedure
Under Cabinet: Screws/Adhesive Tape
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Color Box
Power Factor
>0.5
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's LED multi-purpose light bar offers ease of installation and our most advanced LED technology for countertops, shelves, workbenches, and any craft or workspace. This 10-watt under cabinet light bar makes it easier to light larger areas, all that
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
UNDER CAB LIGHT BAR LED 18"
Sloped Ceiling Compatible
No
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
0.67
Manufactured By
Nuvo
