240 Watt UFO LED High Bay; 4000K; 33360 Lumens; 120-277 Volt; Black Finish : 65/787R2

No Image
Available

Image may not reflect selected features

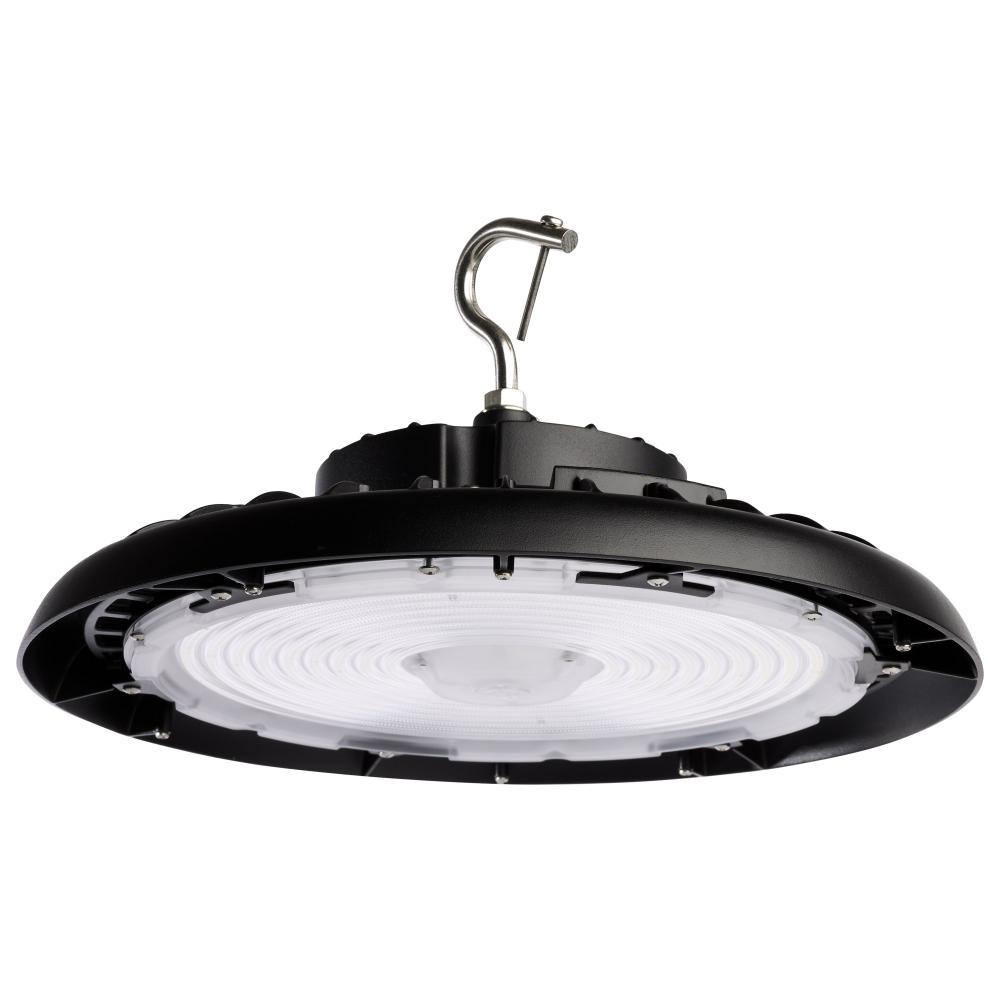

240 Watt UFO LED High Bay; 4000K; 33360 Lumens; 120-277 Volt; Black Finish (65/787R2) by Nuvo

240 Watt UFO LED High Bay; 4000K; 33360 Lumens; 120-277 Volt; Black Finish

Product Specification

Item #

65/787R2

Dimensions

Height: 8.11"

Width: 13.39"

Additional product details

Vendor Item #

65/787R2

Category

Hi-Bay

Sub Category

UFO

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Cool White

Diameter

13.39

Dimmable

Yes-Dimmable

Each Height

4.92

Each Length

14.17

Each Width

14.17

Lumens

33360L

Tariff Code

9405.11.6020

Warranty

5 Year Limited - Fixtures

Wire Length

Amps

2.00-0.866A

ANSI Base

Integrated

BAA Compliant

Beam Angle

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium

DLC Primary Use

High-Bay Luminaires for Commercial and Industrial Buildings

Each Cube

0.5717

Each Quantity

Efficacy

139.00 LPW

FCC Compliant

Yes

Feature 1

Integrated Sensor Port

Feature 2

IP65

Feature 3

6KV Surge Protection

Feature 4

6 Foot Whip

Feature 5

90 degree Beam Angle

Feature 6

50,000 Hours

Feature 7

5 Year Warranty

Finish Family

Black

Has Emergency Battery

HID Equiv

700W

Impact Rating (IK)

IK08

Incandescent Equivalent

2000W

Includes

Locking Hanging Hook; 6 Foot Whip

Indoor Outdoor

Indoor

Installation Notes

Mounting Height: Up to 35 feet

IP Rating

IP65

JA8 Compliant

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO's 65-787R2 240-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti

Material

Die-Cast Aluminum

Mounting Procedure

Pendant Hanging Surface

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-40C (-40F) to +50C (+122F)

Pack Type

Kraft Box

Photocell

Optional Add-On

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's 240-watt, 4000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

LED UFO HIGHBAY 240W/4000K

Temperature (CCT)

4000K

Title 20 Compliant

Total Harmonic Distortion

15%

Wattage Selectable

Weight Lb.

6.42

Manufactured By

Nuvo

Finish

Additional options that would change other selections
