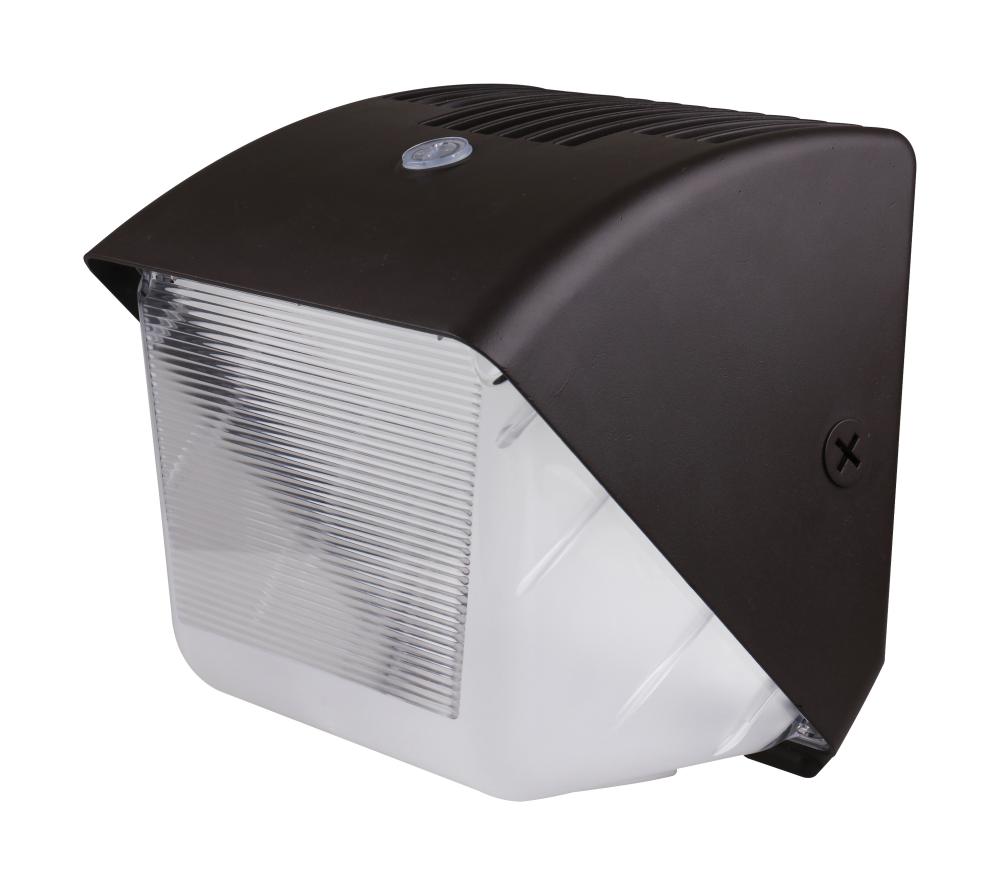

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; (65/655)
by Nuvo
29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish
Product Specification
Item #
65/655
Dimensions
Height: 8.44"
Width: 8.50"
Additional product details
Vendor Item #
65/655
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Mini
Style
Traditional
Additional Info
IK10 Lens
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
9.65
Each Length
9.880000000000001
Each Width
10.19
Lumens
3650L-3770L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.242-0.105A
ANSI Base
Integrated
Beam Angle
80
B_U_G_Rating
B1-U3-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
70+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.5622
Each Quantity
1
Efficacy
125.86/127.93/130.00 LPW
FCC Compliant
Yes
Feature 1
DLC Premium
Feature 2
Integrated Bypassable Photocell
Feature 3
CCT Selectable
Feature 4
UV stabilized powder coated finish
Feature 5
IP65 Rated
Feature 6
80 Degree Viewing Angle
Finish Family
Bronze
Flicker Free
Yes
HID Equiv
125W
Impact Rating (IK)
IK10
Incandescent Equivalent
200W
Indoor Outdoor
Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Long Description
SATCO|NUVO's 65-655 CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to dire
Material
Aluminum / Polycarbonate (PC)
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
R9 Value
2
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct ligh
Safety Listing
cULus
SDS class
LED_Fixture
Short Description
29W LED SMALL WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
5.08
Manufactured By
Nuvo
Finish
