4 Foot; LED Tri-Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; : 65/831R1

No Image
Available

Image may not reflect selected features

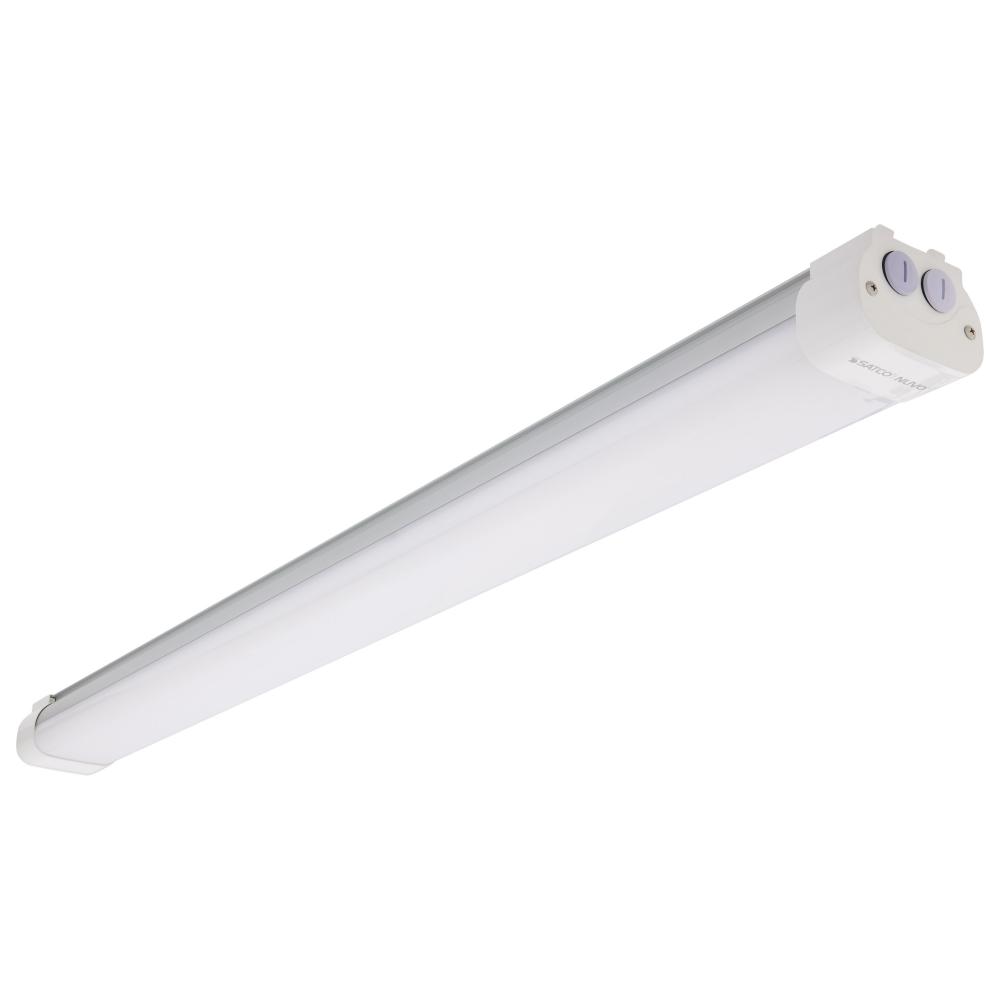

4 Foot; LED Tri-Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; (65/831R1) by Nuvo

4 Foot; LED Tri-Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

Product Specification

Item #

65/831R1

Dimensions

Height: 3.11"

Width: 3.98"

Additional product details

Vendor Item #

65/831R1

Category

Linear

Sub Category

Vapor Proof

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

4.33

Each Length

49.61

Each Width

6.89

Length

47.24

Lumens

5040L-7669L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.333-0.115/0.417-0.144/0.500-0.173A

ANSI Base

Integrated

BAA Compliant

Beam Angle

115

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

China

CRI

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming

DLC Classification

Standard; Standard

DLC Primary Use

Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube

0.8565

Each Quantity

Efficacy

126.00/127.09/127.82 LPW

FCC Compliant

Yes

Feature 1

120-347 Voltage - FOR USE IN CANADA

Feature 10

High lumens per Watt ratio

Feature 2

Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities

Feature 3

IP65 and IK08 Rated

Feature 4

CCT and Wattage Selectable

Feature 5

2KV built-in Surge Protection

Feature 6

Non-corrosive (PC) polycarbonate housing

Feature 7

0-10V Dimmable

Feature 8

FCC and RoHS compliant

Feature 9

5 Year Warranty

Finish Family

White

Fixture shape

Linear

Flicker Free

Has Driver

Yes

HID Equiv

125W-150W

Impact Rating (IK)

IK08

Incandescent Equivalent

300W-400W

Indoor Outdoor

Indoor;Outdoor

IOT Enabled

IP Rating

IP65

JA8 Compliant

Lens Finish

Opaque

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO's 65-831R1 wattage selectable, 4 foot Tri-Proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT and wattage selectable and wet location rated, with 2KV s

Material

Plastic

Mounting Procedure

Ceiling/Wall

NSF Approved

Yes

Operating Frequency

50/60Hz

Operating Temp

-40C (-40F) to +45C (+113F)

Pack Type

Box

Power Factor

>0.96

Quantity In Pack

Rated For Vapor Tight Fixture

Yes

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

4' LED TRI-PROOF LINEAR

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

16.20%

Wattage Selectable

Yes

Weight Lb.

4.41

Manufactured By

Nuvo

Finish

Additional options that would change other selections
