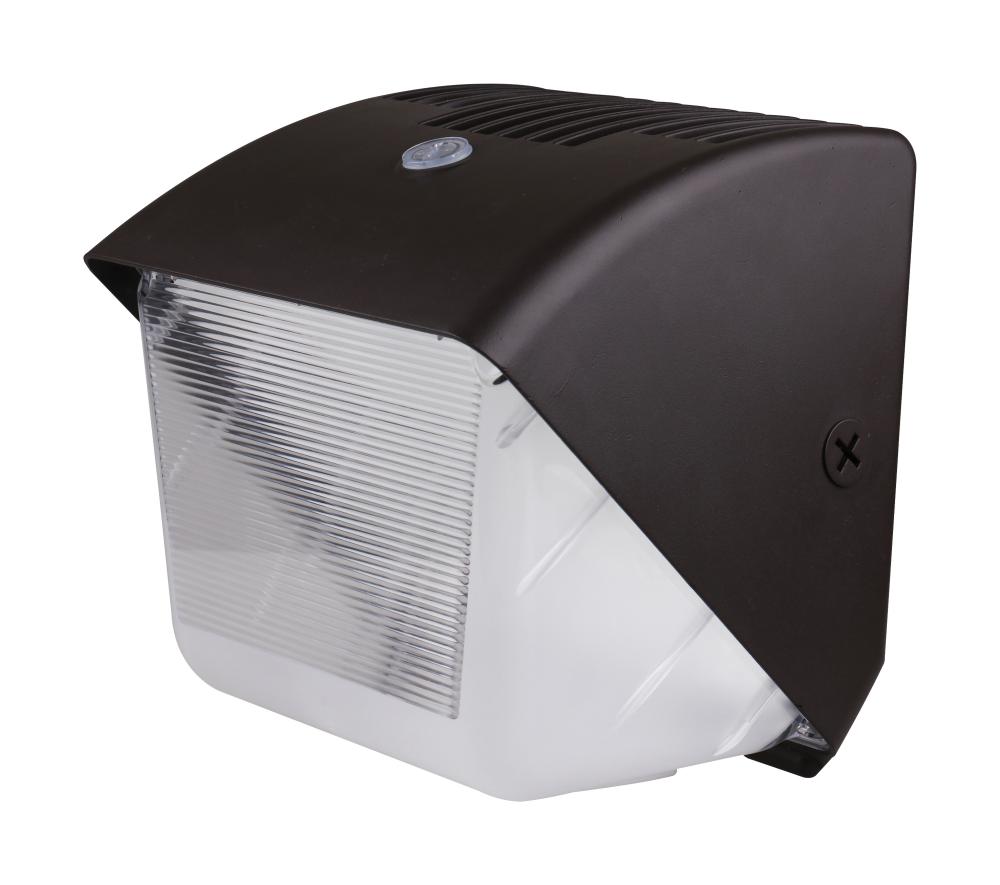

40 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; (65/656)
by Nuvo
40 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish
Product Specification
Item #
65/656
Dimensions
Height: 8.44"
Width: 8.50"
Additional product details
Vendor Item #
65/656
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
Bronze
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Mini
Style
Traditional
Additional Info
IK10 Lens
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Non-Dimmable
Each Height
9.65
Each Length
10.14
Each Width
9.84
Lumens
4200L-5000L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.333-0.144A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
80
B_U_G_Rating
B2-U3-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
70+
Each Cube
0.5572
Each Quantity
1
Efficacy
105.00/115.00/125.00 LPW
FCC Compliant
Yes
Feature 1
80 Degree Viewing Angle
Feature 2
Integrated Bypassable Photocell
Feature 3
CCT Selectable
Feature 4
UV stabilized powder coated finish
Feature 5
IP65 Rated
Finish Family
Bronze
Flicker Free
Yes
HID Equiv
150W
Impact Rating (IK)
IK10
Incandescent Equivalent
300W
Indoor Outdoor
Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Long Description
CCT selectable small wall packs in a compact size, perfect for light commercial use. They're built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most w
Material
Aluminum / Polycarbonate (PC)
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
R9 Value
2
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
CCT selectable small wall packs in a compact size, perfect for light commercial use. They're built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most w
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
40W LED SMALL WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
No
Weight Lb.
5.08
Manufactured By
Nuvo
