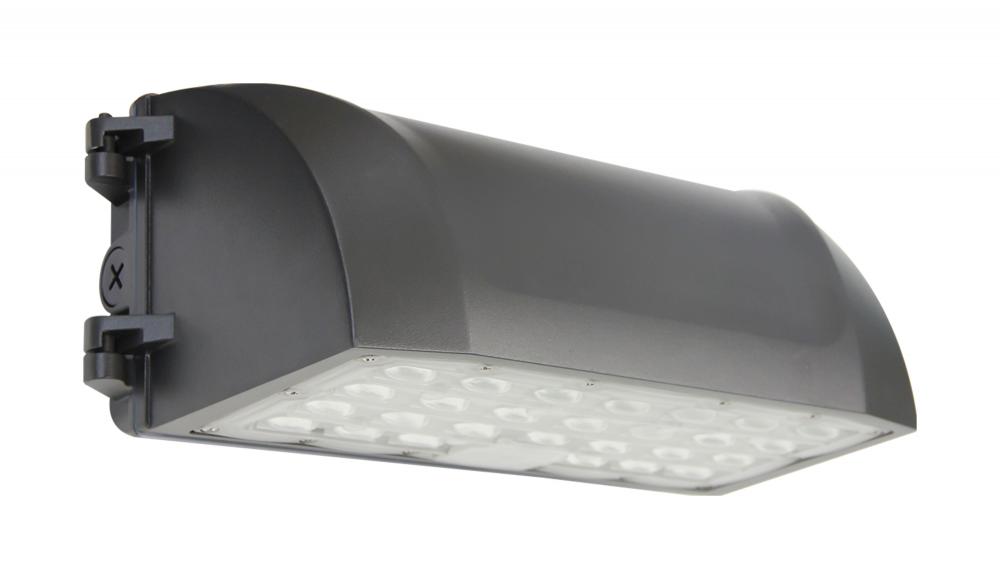

60 Watt Full Cutoff LED Wall Pack; CCT Selectable; 7200-7500 Lumens; DLC Premium (65/672) by Nuvo

60 Watt Full Cutoff LED Wall Pack; CCT Selectable; 7200-7500 Lumens; DLC Premium

Product Specification

Item #

65/672

Dimensions

Height: 5.10"

Width: 12.61"

Additional product details

Vendor Item #

65/672

Category

Wall Pack

Sub Category

Standard

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

9.06

Each Length

13.78

Each Width

7.28

Lumens

7200L-7500L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.500-0.217A

ANSI Base

Integrated

BAA Compliant

Beam Angle

90x100

B_U_G_Rating

B2-U2-G1

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only

DLC Classification

Premium

DLC Primary Use

Outdoor Full-Cutoff Wall-Mounted Area Luminaires

Each Cube

0.526

Each Quantity

Efficacy

120.00/122.50/125.00 LPW

FCC Compliant

Yes

Feature 1

IP65 rating for all-weather durability

Feature 2

Directs light down, with no light trespass

Feature 3

0-10V dimming

Feature 4

Maintenance free

Feature 5

Polycarbonate lens, die-cast aluminum body

Feature 6

Operating temperature: -40C (-40F) to a maximum of 40C (104F)

Finish Family

Bronze

Has Driver

Yes

HID Equiv

150W-200W

Incandescent Equivalent

400W

Indoor Outdoor

Outdoor

IP Rating

IP65

JA8 Compliant

Lens Material

Impact Resistant PC

Long Description

SATCO|NUVO's 65-672 60-watt rugged Full Cutoff Wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-e

Material

Die-Cast Aluminum

Mounting Procedure

Wall

Operating Frequency

50-60Hz

Operating Temp

-40C (-40F) to +40C (+104F)

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

This rugged wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-efficient LED light. An add-on photocell

Safety Listing

cULus - Listed

SDS class

LED_Fixture

Short Description

60W FULL CUTOFF WALL PACK

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

10.42%

Wattage Selectable

Weight Lb.

5.07

Wire Temp Rating

105C (221F)

Manufactured By

Nuvo

Finish
