Blink Pro Plus; 24 Watt; 12 in. x 24 in.; Surface Mount LED; CCT Selectable; 90 CRI; White Finish; : 62/1773

No Image
Available

Image may not reflect selected features

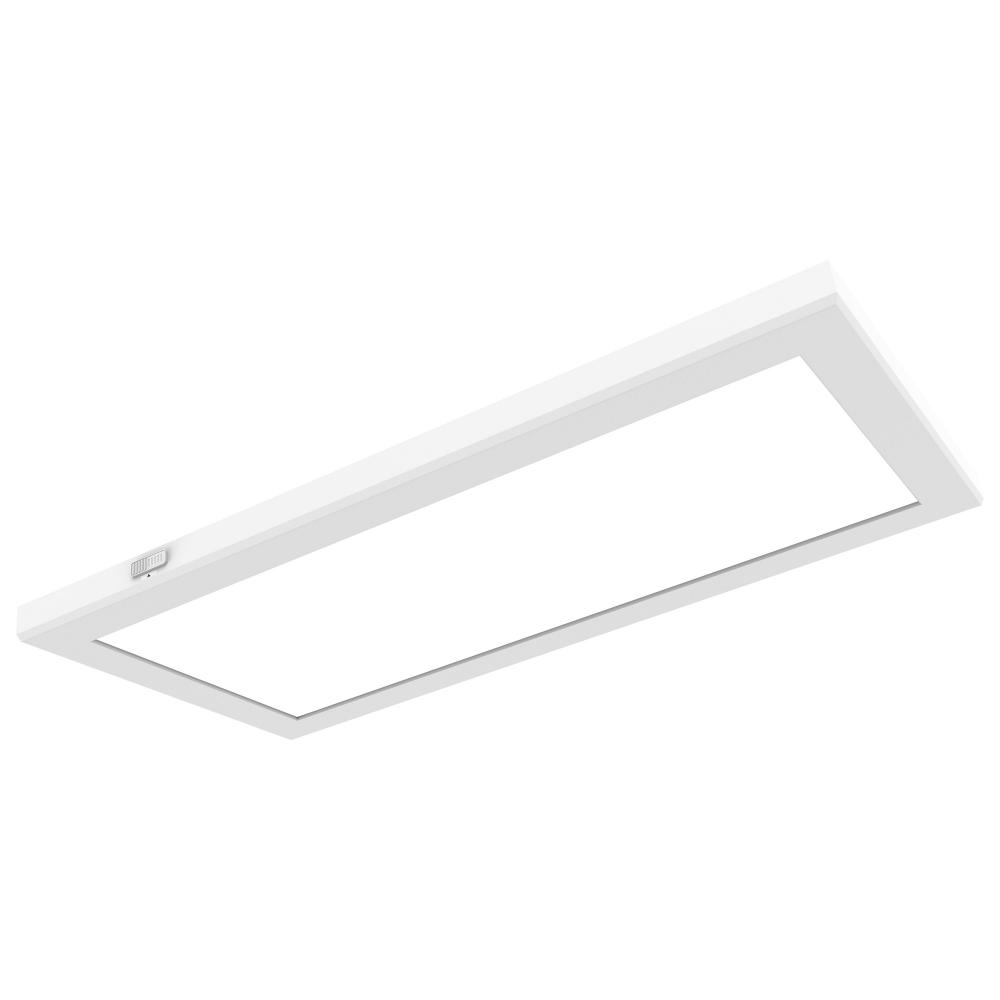

Blink Pro Plus; 24 Watt; 12 in. x 24 in.; Surface Mount LED; CCT Selectable; 90 CRI; White Finish; (62/1773) by Nuvo

Blink Pro Plus; 24 Watt; 12 in. x 24 in.; Surface Mount LED; CCT Selectable; 90 CRI; White Finish; 120/277 Volt; Rectangular Shape

Product Specification

Item #

62/1773

Dimensions

Height: 1.06"

Width: 11.83"

Additional product details

Vendor Item #

62/1773

Category

Close-to-Ceiling

Sub Category

Edge Lit

Style

Contemporary

Additional Info

UGR - 19.7; Hi pot - DC-1550V; Edge-lit - Yes

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm to Cool White

Dimmable

Yes-Dimmable

Each Height

12.2

Each Length

24.02

Each Width

1.18

Length

23.7

Lumens

1650L-1900L

Tariff Code

9405.11.8020

Warranty

5 Year Limited - Fixtures

Amps

0.200/0.087A

ANSI Base

Integrated

BAA Compliant

Beam Angle

110

CA Prop-65

Lead

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Country Of Origin

Thailand

CRI

Dimmable Down To

100 to 10 percent

Dimmable Function

120V only

Dimming Type

Forward Phase or Reverse Phase

Each Cube

0.2001

Each Quantity

Efficacy

68.75/73.96/79.17 LPW

ES Category

Downlight Surface Mount

ES Unique ID

ESID-2405315

FCC Compliant

Yes

Feature 1

Integrated LED featuring 24 watts, CCT Selectable from warm to natural light, 90 CRI

Feature 2

Fixture is dimmable, selectable from 1650 to 1900 lumens

Feature 3

Dimensions: 23.70 in L x 11.83 in W x 1.06 in H

Feature 4

White Finish with Acrylic Panel

Feature 5

Ideal for utility, basements, kitchens, garages, bathrooms, bedrooms, hallways

Feature 6

Rated for 50,000 hours

Feature 7

5 Year Warranty

Feature 8

Easy installation with included instructions

Feature 9

Visit Satco.com for our entire line of BLINK products

Finish Family

White

Fixture shape

Rectangle

Flicker Free

Incandescent Equivalent

125W

Indoor Outdoor

Indoor

Installation Notes

Compatible with 3" & 4" J-box and pancake J-box

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Poly methyl methacrylate (PMMA)

Long Description

Raising the bar for professional lighting, we present BLINK Pro Plus, a sleek design with advanced technology and features abound. BLINK's ENERGY STAR certified 62-1773 embodies a contemporary yet familiar aesthetic, a versatile solution suitable for a

Material

Die-Cast Aluminum

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temp

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Raising the bar for professional lighting, we present BLINK Pro Plus, a sleek design with advanced technology and features abound. BLINK's ENERGY STAR certified fixtures embody a contemporary yet familiar aesthetic, a versatile solution suitable for a

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

BLINK PRO PLUS 24W 1'X2'

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Wattage Selectable

Weight Lb.

4.92

Manufactured By

Nuvo

Finish

Additional options that would change other selections
