LED Bulkhead - 20W - 3000K - Black Finish - 120-277V : 65/114

No Image
Available

Image may not reflect selected features

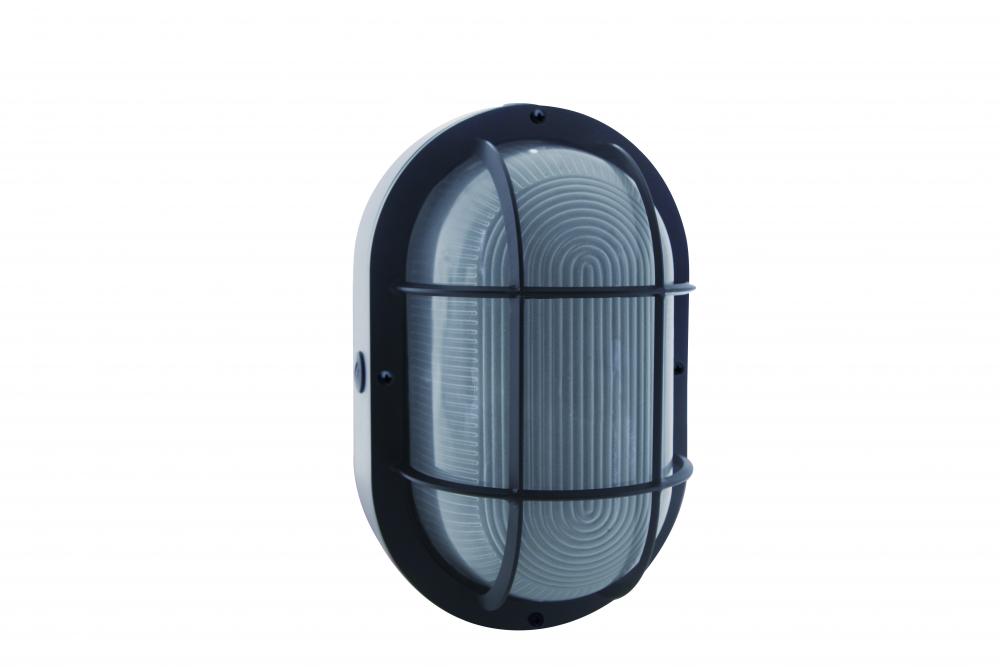

LED Bulkhead - 20W - 3000K - Black Finish - 120-277V (65/114) by Nuvo

20W LED Bulk Head Fixture; Black Finish

Product Specification

Item #

65/114

Dimensions

Height: 11.25"

Width: 7.00"

Additional product details

Vendor Item #

65/114

Category

Outdoor

Sub Category

Bulkhead

Style

Bulk Head

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Dimmable

Non-Dimmable

Each Height

6.02

Each Length

12.95

Each Width

8.779999999999999

Lumens

1440L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.200-0.072A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

Each Cube

0.3961

Each Quantity

Efficacy

72.00 LPW

ES Category

Wall Sconces

ES Unique ID

ESID-2298580

FCC Compliant

Yes

Feature 1

Width: 7.00 inches, Height: 11.25 inches, Extends: 5.50 inches

Feature 2

Superior 90 CRI light quality

Feature 3

Black Finish with Brushed Nickel Accents

Feature 4

Direct Wired Connection

Feature 5

1440 lumens

Feature 6

Wet location rated for outdoor use

Feature 7

Easy installation

Feature 8

FCC and RoHS compliant

Feature 9

5 year limited warranty

Finish Family

Black

Incandescent Equivalent

100W

Indoor Outdoor

Outdoor

JA8 Compliant

Lens Finish

Frosted

Lens Material

Glass

Long Description

Satco's 65-114 20 watt LED bulk head is an attractive, high efficiency wall fixture good for both indoor and outdoor applications. Illuminate docks, walkways, entrances, patios, and pool decks with this durable, die-cast aluminum bulk head. This LED bu

Material

Die-Cast Aluminum

Mounting Procedure

Wall

Operating Temp

-20C (-4F) to +40C (+104F)

Pack Type

Box

Power Factor

0.99

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 20 watt LED bulk head is an attractive, high efficiency wall fixture good for both indoor and outdoor applications. Illuminate docks, walkways, entrances, patios, and pool decks with this durable, die-cast aluminum bulk head. This LED bulk head

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

20W LED BULK HEAD

Temperature (CCT)

3000K

Title 20 Compliant

Title 24 Compliant

Total Harmonic Distortion

<20%

Wattage Selectable

Weight Lb.

5.32

Manufactured By

Nuvo

Finish

Additional options that would change other selections
