LED Small Oval Bulk Head Fixture; White Finish with White Glass : 62/1388

No Image
Available

Image may not reflect selected features

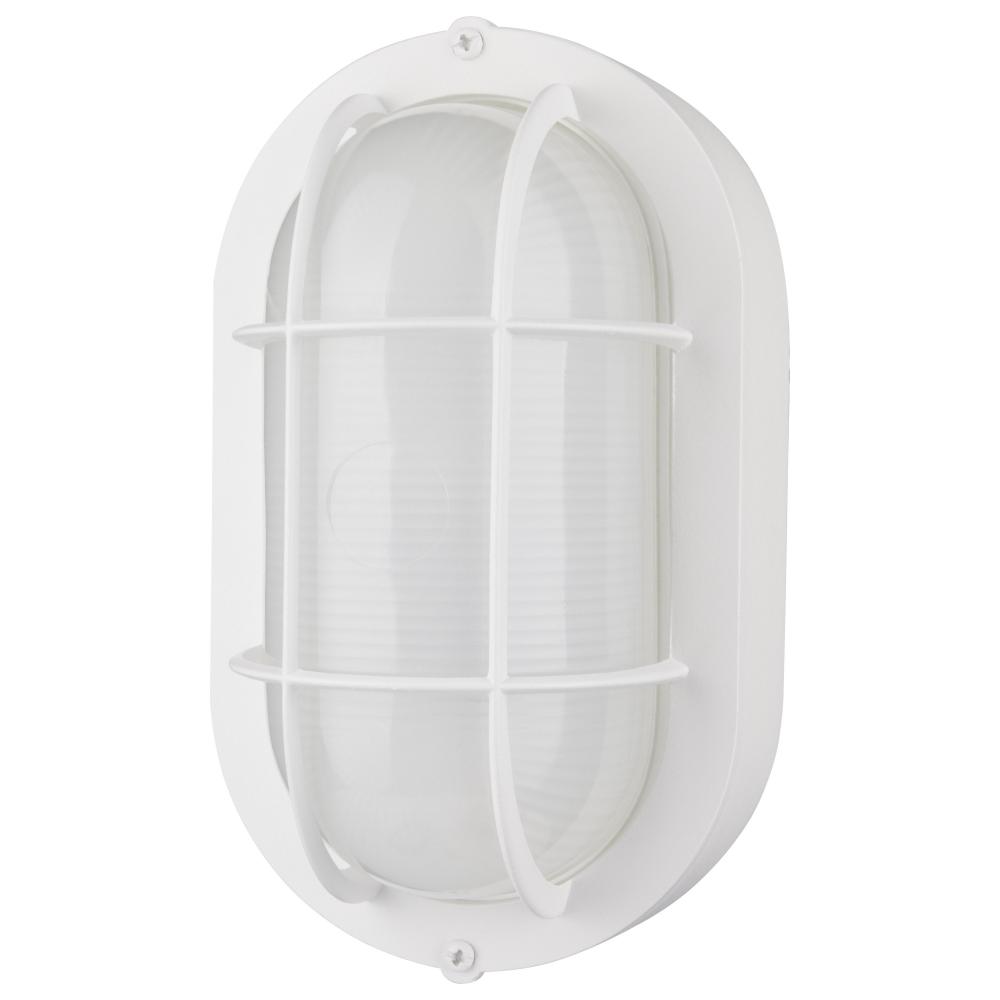

LED Small Oval Bulk Head Fixture; White Finish with White Glass (62/1388) by Nuvo

LED Small Oval Bulk Head Fixture; White Finish with White Glass

Product Specification

Item #

62/1388

Dimensions

Height: 8.51"

Width: 5.00"

Additional product details

Vendor Item #

62/1388

Category

Outdoor

Sub Category

Bulkhead

Style

Traditional

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Dimmable

Yes-Dimmable

Each Height

4.72

Each Length

8.460000000000001

Each Width

4.92

Lumens

800L

Tariff Code

9405.11.6010

Warranty

5 Year Limited - Fixtures

Amps

0.117A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Hardwire

Country Of Origin

China

CRI

Dimmable Down To

100 to 10 percent

Each Cube

0.1137

Each Quantity

Efficacy

57.14 LPW

ES Category

Other

ES Unique ID

ESID-2393482

FCC Compliant

Yes

Feature 1

UV Stabilized Powder Coated Finish

Feature 2

Die-cast Aluminum Body

Feature 3

Rated For 50,000 Hours

Feature 4

Dimmable

Feature 5

Wet location certified

Feature 6

T24/JA8 Compliant

Feature 7

Energy Star Certified

Feature 8

5 year warranty

Finish Family

White

Has Driver

Has Emergency Battery

Incandescent Equivalent

60W

Indoor Outdoor

Outdoor

IOT Enabled

JA8 Compliant

Yes

Lens Finish

White

Lens Material

Glass

Long Description

62-1388 is a member of Satco Nuvo's newest collection of lighting standard fixtures designed to incorporate the latest energy-efficient LED technology with rugged case and lens materials built to withstand the elements. This small oval bulkhead fixture

Material

Die-Cast Aluminum

Mounting Procedure

Wall

Operating Frequency

60Hz

Operating Temp

-17C (-1.4F) to +45C (+113F)

Pack Type

Box

Photocell

Power Factor

0.93

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco Nuvo's newest collection of lighting standard fixtures are designed to incorporate the latest energy-efficient LED technology with rugged case and lens materials built to withstand the elements. These fixtures are perfect for outdoor walkways, en

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

LED SMALL OVAL BULK HEAD

Temperature (CCT)

3000K

Title 20 Compliant

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

1.89

Manufactured By

Nuvo

Finish

Additional options that would change other selections
