Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish : 65/880

No Image
Available

Image may not reflect selected features

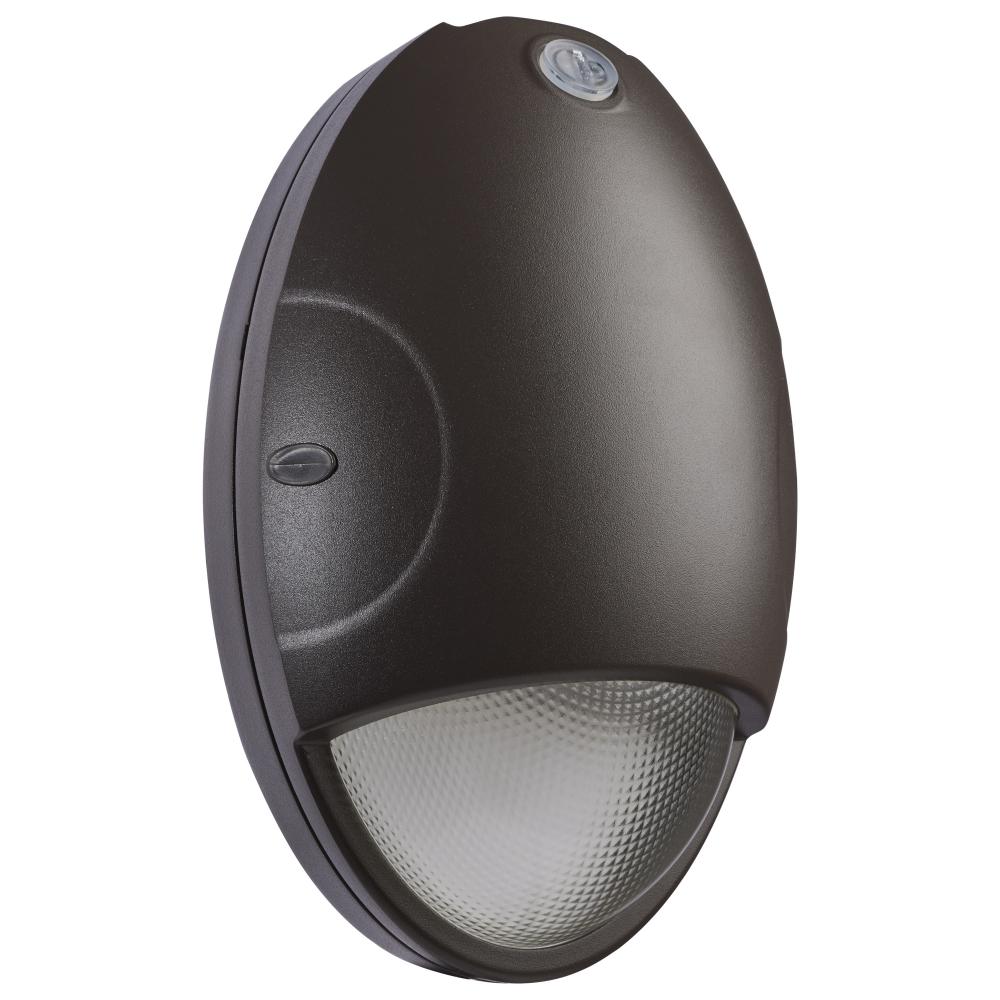

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish (65/880) by Nuvo

Oval Small Emergency Wall Pack; LED; CCT Selectable; Photocell; Bronze Finish

Product Specification

Item #

65/880

Dimensions

Height: 10.47"

Width: 6.54"

Additional product details

Vendor Item #

65/880

Category

Wall Pack

Sub Category

Emergency Lighting

Style

Utility

Additional Info

Battery Mode: 5 Watts, 90 Minute Run Time

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Neutral White to Natural Light

Diameter

6.54

Dimmable

Yes-Dimmable

Each Height

10.83

Each Length

6.77

Each Width

4.06

Lumens

1740L-1814L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.125-0.054A

ANSI Base

Integrated

Battery Chemistry

Lithium-ion (Li-ion)

Beam Angle

100

B_U_G_Rating

B1-U3-G1

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Hardwire

Country Of Origin

Vietnam

CRI

Dimmable Function

0-10V Dimming

DLC Classification

Premium

DLC Primary Use

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube

0.1723

Each Quantity

Efficacy

116.00/118.47/120.93 LPW

FCC Compliant

Yes

Feature 1

3500K/4000K/5000K CCT Selectable

Feature 2

Integrated EM Backup Test Indicator Button

Feature 3

Integrated by-passable photocell

Feature 4

Wet Location

Feature 5

IK08

Feature 6

DLC Premium

Feature 7

Bronze Finish

Feature 8

H: 10.47 inches X W: 6.54 inches X D: 3.78 inches

Finish Family

Bronze

Fixture shape

Oval

Flicker Free

Has Emergency Battery

Yes

HID Equiv

60W

Impact Rating (IK)

IK08

Incandescent Equivalent

75W

Indoor Outdoor

Indoor;Outdoor

IOT Enabled

IP Rating

IP65

JA8 Compliant

Lens Finish

Prismatic

Lens Material

Polycarbonate (PC)

Long Description

SATCO|NUVO's state-of-the-art Emergency Battery Backup Wall Pack is a compact and sleek lighting solution designed to keep your space safe and well-illuminated during emergencies. Equipped with an integrated EM backup test indicator button, this fixtur

Material

Die-Cast Aluminum

Mounting Procedure

Wall

Operating Frequency

50/60Hz

Operating Temp

0C (+32F) to +45C (+113F)

Pack Type

Color Box

Photocell

Has Photocell

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Safety Listing

cULus

SDS class

LED_Fixture

Short Description

LED SMALL EM WALL PACK BRONZE

Temperature (CCT)

3500K/4000K/5000K

Title 20 Compliant

Total Harmonic Distortion

15%

Wattage Selectable

Weight Lb.

3.61

Manufactured By

Nuvo

Finish
