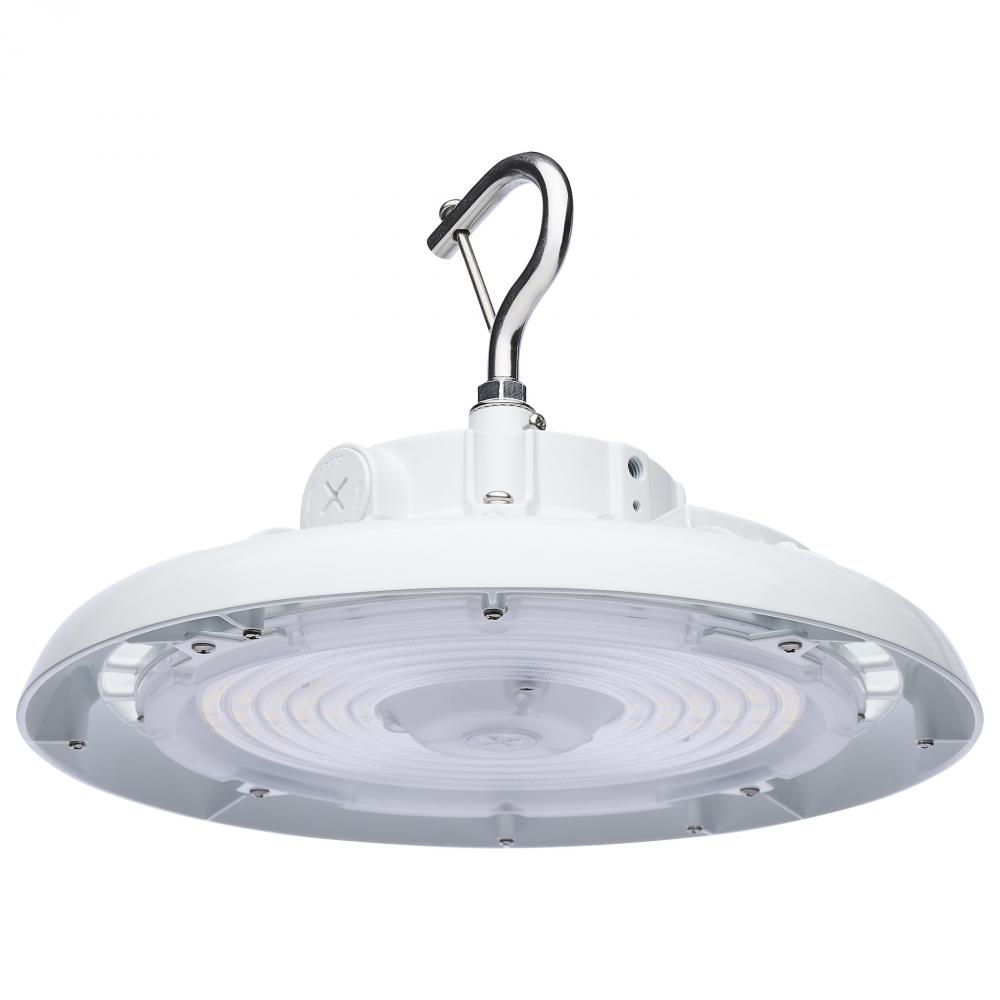

Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay; 120-347 Volt; White Finish (65/812)
by Nuvo
Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay; 120-347 Volt; White Finish
Product Specification
Item #
65/812
Dimensions
Height: 7.30"
Width: 11.00"
Additional product details
Vendor Item #
65/812
Category
Utility
Subcategory
Other Utility
Option
LED
, Prop 65
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
11
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
11.81
Each Width
11.81
Lumens
11840L-18600L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
0.667-0.231/0.833-0.288/1.000-0.346A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.3971
Each Quantity
1
Efficacy
148.00/152.20/155.00 LPW
FCC Compliant
Yes
Feature 1
CCT and Wattage Selectable
Feature 10
White Finish
Feature 2
Range Voltage 120V-347V
Feature 3
Integrated Sensor Port
Feature 4
EM Battery Backup Capable
Feature 5
6 Foot Supply and Low Voltage Whips
Feature 6
0-10V Dimming
Feature 7
6kV Surge Protection and Wet Location Rated
Feature 8
IP65 and IK08
Feature 9
50,000 Hour Functional Life
Finish Family
White
Fixture shape
Round
HID Equiv
150W-250W
Impact Rating (IK)
IK08
Incandescent Equivalent
500W/600W/1000W
Includes
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 20 feet
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-812 Round High Bay Field Selectable fixture in a white finish, offers an energy efficient and low-maintenance alternative to traditional HID fixtures. This luminary is field selectable, giving users the flexibility to choose from three
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Kraft Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's Round High Bay Field Selectable fixtures offer an energy efficient and low-maintenance alternative to traditional HID fixtures. These luminaires are field selectable, giving users the flexibility to choose from three wattage and three CCT
Safety Listing
cULus - Listed
Short Description
LED UFO HIGHBAY CCT & WATT ADJ
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
Yes
Weight Lb.
4.53
Manufactured By
Nuvo
