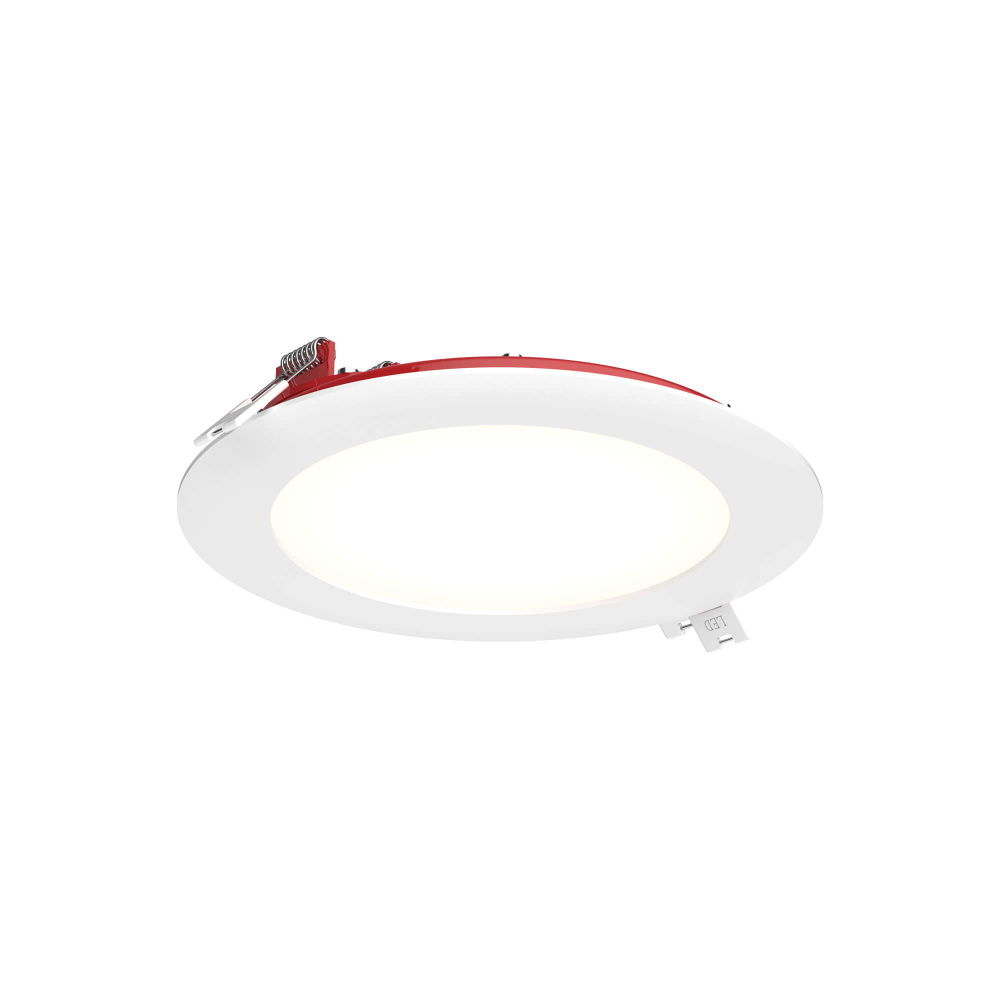

6" recessed panel, 5CCT, 2hrs Fire rated (5006-FR-CC-WH)
by Dals
Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Product Specification
Item #
5006-FR-CC-WH
Dimensions
Height: 1.13"
Width: 7.13"
Length: 7.13"
Additional product details
Vendor Item #
5006-FR-CC-WH
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24
, Outdoor
, Wet Rated
, Prop 65
Category
Recessed
Subcategory
Slim Panel
Finish
White
Family
Excel
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700/3000/3500/4000/5000
Material
Aluminum
Ship Carton Height
2.5
Ship Carton Length
8.5
Ship Carton Width
7.25
Ship Weight
1.2
Warranty
5 Years Limited
Weight
1.1
Air-Tight (ASTM E283--4)
Yes
Beam Angle
110°
Bulb CRI
80
Country of Origin
China
Delivered Lumens
1230
Dimmer Type
Triac/ELV
Energy Star
No
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
JA8
Yes
Lens Material
Plastic
Location Rating
Wet Rated
Max Wattage
14 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
15.25
Shipping Master Length
17.5
Shipping Master Quantity
20
Shipping Master Weight
24
Shipping Master Width
14
Title 24
Yes
Wiring
Hardwired
Manufactured By
Dals
Other Details:
- 2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
- Every fixture includes a junction box with an integrated driver
- IC certification (suitable for direct contact with insulation)
- Over 35,000 hours of service life
- Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
