7in wall sconce with photocell universal 120V-347V, 0-10V dimming
Image may not reflect selected features
/vendors/776/large/dswc07-cc-v-bk-view1-scaled.jpg
additional image
additional image

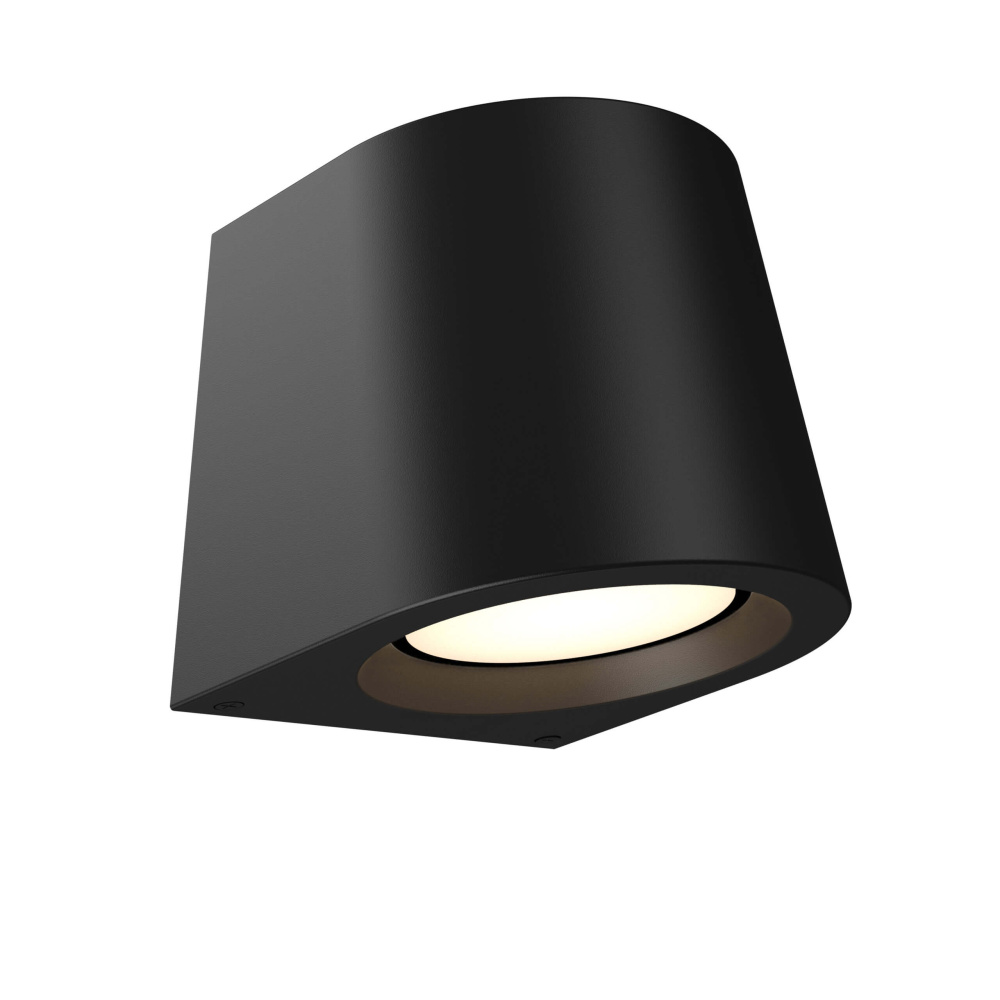

7in wall sconce with photocell universal 120V-347V, 0-10V dimming (DSWC07-CC-V-BK) by Dals
These 5? and 7? dark-sky friendly wall fixtures offer focused, energy-efficient illumination while minimizing light pollution, making them ideal for environmentally conscious outdoor spaces. The photocell feature automatically adjusts to changing light conditions, providing energy-efficient illumination without requiring manual control.
Downloads
Product Specification
Item #
DSWC07-CC-V-BK
Dimensions
Height: 7.00"
Width: 6.79"
Length: 6.69"
Additional product details
Vendor Item #
DSWC07-CC-V-BK
Category
Exterior
Subcategory
Sconces
Finish
Black
Option
Dark Sky , Title 24 , Outdoor , Wet Rated
Category
Wall
Subcategory
Sconce
Finish
Black
Option
Dark Sky , Outdoor , Title 24
Family
Shield
Voltage
120 V/ 277 V/ 347 V
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Kelvin
2200, 2700, 3000, 3500, 4000
Material
Aluminum
Ship Carton Height
6.13
Ship Carton Length
7.13
Ship Carton Width
6.9
Ship Weight
4.5
Warranty
5 Years Limited
Weight
4.1
Beam Angle
100
Bulb CRI
90
Country of Origin
China
Dark Sky
Yes
Delivered Lumens
1993
Dimmer Type
0-10V
IP Rating
IP54
Lens Material
Glass
Location Rating
Wet Rated
Max Wattage
24 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-30°C
Outdoor
Yes
Safety Rating
ETL Approved
Shipping Master Height
13
Shipping Master Length
14.4
Shipping Master Quantity
4
Shipping Master Width
7.5
Title 24
Yes
Wiring
Hardwired
Manufactured By
Dals


Other Details:
  • 5-year warranty
  • Die-cast aluminum housing
  • Integrated dimmable driver
  • Integrated photocell for automatic lighting control (can be disabled)
  • Switch-selectable CCT: 2200k, 2700K, 3000K, 3500K, 4000K
Call for Price
Qty:
BASE PRICE:
$
343
50
/ / 1
($343.50 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer may be Out Of Stock.
