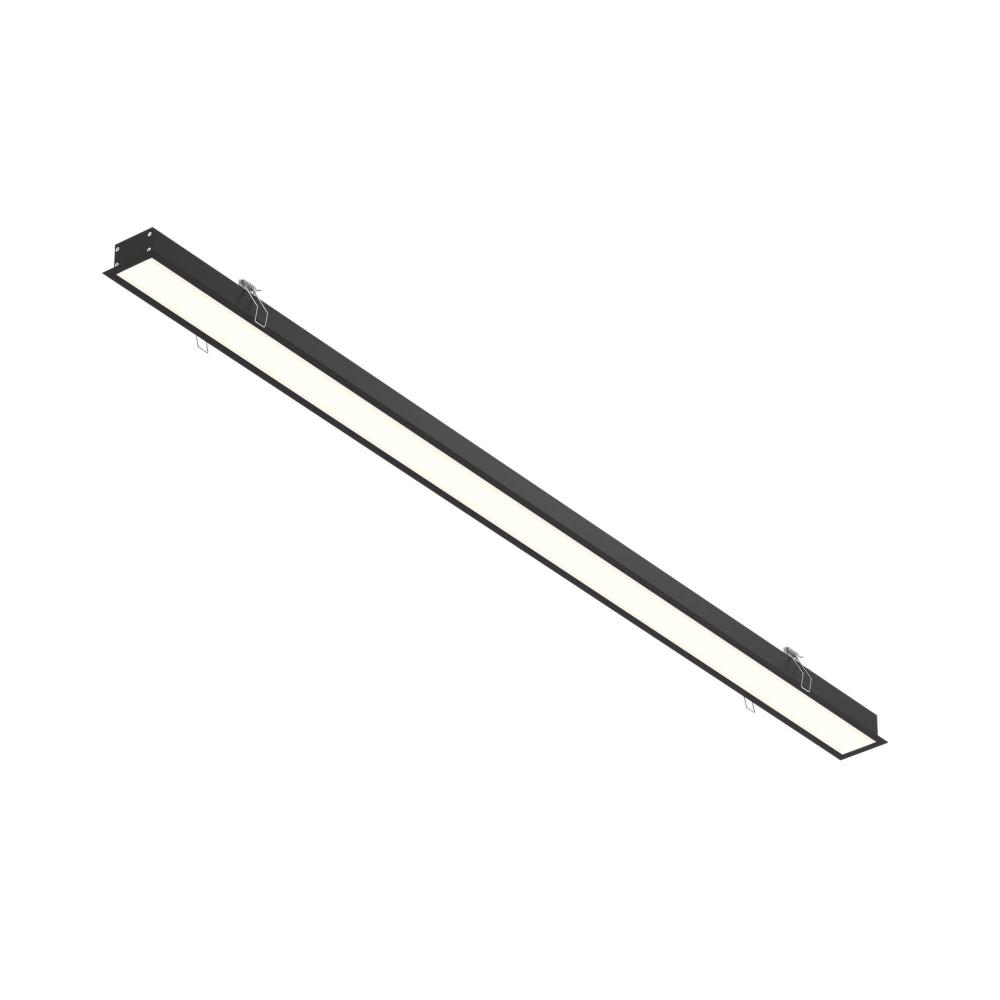

Recessed linear 48" - 120V, Triac dimming, 5CCT (LNR48-CC-BK)
by Dals
The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.
Downloads
Product Specification
Item #
LNR48-CC-BK
Dimensions
Height: 1.88"
Width: 2.50"
Length: 47.75"
Additional product details
Vendor Item #
LNR48-CC-BK
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Black
Option
Energy Star
, Title 24
, Dry Rated
Category
Recessed
Subcategory
Linear
Finish
Sandy Black
Family
Boulevard
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Harmonized Codes
9405.11.0091
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum Extrusion
Ship Carton Height
3.7
Ship Carton Length
49
Ship Carton Width
4.1
Ship Weight
3.3
Warranty
5 Years Limited
Air-Tight (ASTM E283--4)
Yes
Beam Angle
108°
Bulb CRI
90
Country of Origin
China
Delivered Lumens
3760
Dimmer Type
Triac
Energy Star
Yes
IC Certification
Yes
Indoor
Yes
IP Rating
IP20
JA8
Yes
Lens Material
Frosted PC
Location Rating
Dry Rated
Max Wattage
40 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
12
Shipping Master Length
49
Shipping Master Quantity
6
Shipping Master Weight
23
Shipping Master Width
8.7
Title 24
Yes
Wiring
Hardwired
Manufactured By
Dals
Other Details:
- 108° beam spread
- Every fixture includes a junction box with integrated dimmable driver
- Ideal operating temperature: -20° to 40° C
- Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K
