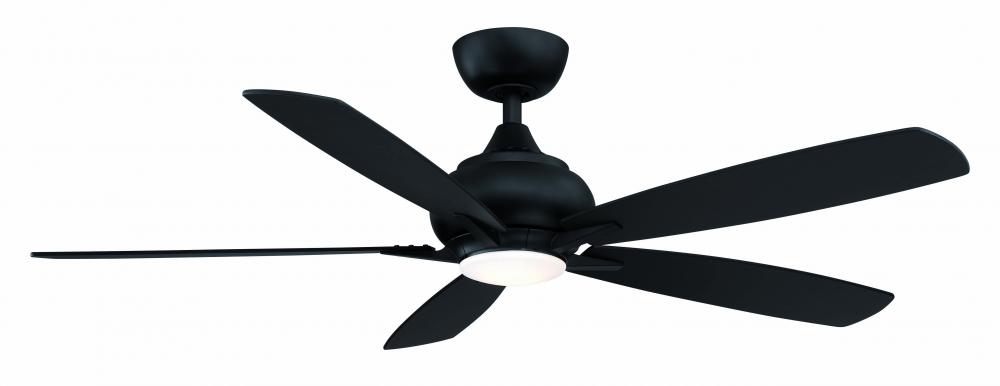

Doren - 52 inch - BL with LED Light Kit (FP8533BL)
by Fanimation
This beautiful transitional ceiling fan by Fanimation will make a great addition to your space. Doren is available in two finishes and comes with a 17 watt LED light kit. This dry rated fan has a 3 speed AC motor and comes with a handheld remote. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
5198 Cubic Feet per Minute
Electricity Rate
59 Watts (excluded lights)
Airflow Efficiency
89 Cubic Feet Per Minute Per Watt
Product Specification
Item #
FP8533BL
Dimensions
Height: 13.65"
Width: 52.00"
Length: 52.00"
Additional product details
Vendor Item #
FP8533BL
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Traditional
Option
Dry Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
5 Blades
Location Rating
Dry Rated
Category
Fan-Uni
Finish
Black
Option
Dry Rated
Family
Doren
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
, 5198 CFM on High
, Limited Lifetime Warranty
, Set of (5) 52 inch blades with multiple finish options and 17 watt LED light kit with bulb included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
5198
Air Flow Efficiency
89
Amperage
0.49
Blade Finish
Black
Blade Pitch
13
Bulb Type
17 Watt LED Module
Canopy
6.52 Dia x 2.59 H
Diameter
9.12
Down Rod Included
4.5
Electricity Used
59
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1350
Material
Wood
Motor Fan Speed
3
Motor RPM
163
Motor Size
172 X 20
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.12
Ship Carton Length
24.33
Ship Carton Width
11.26
Ship Weight
20.19
Sold By
Each
Warranty
Limited Lifetime
Weight
19.84
Airflow Efficiency Low
160
Airflow Efficiency Medium
114
Avg Airflow Efficiency
97
Avg CFM Energy
3774
Avg Energy Use Watts
39
Avg Estimated Yearly Energy Cost
11
Avg Estimated Yearly Energy Cost on HIGH
17
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
17
Canopy Diameter
6.52 Dia
Canopy Height
2.59 H
Cap Included
No
Carton Cubic Feet
1.6
Cartons Per Unit
1
Case Height
10.12
Case Length
24.33
Case Quantity
1
Case Weight Pounds
20.19
Case Width
11.26
CEC Uploaded
Yes
Ceiling To Blade Edge
12.53
Ceiling To Bottom
13.65
CFM Low
2159
CFM Medium
3756
Compatible Accessories
CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52
Compatible Controls
BTCR9, BTR9, WFR50
Compatible Wall Controls
WC2WH, WR501WH
Country of Origin
China
CRI
90
Current Draw High
0.49
Current Draw Low
0.23
Current Draw Medium
0.37
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
9.12
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
59
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
5
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
163
RPM Low (II)
72
RPM Medium (IV)
121
RPM Medium IV
84
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
13
Watts Medium
33
Watts Per Bulb
17
Manufactured By
Fanimation
Other Details:
- 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
- 5198 Cfm On High
- Limited Lifetime Warranty
- Set Of (5) 52 Inch Blades With Multiple Finish Options And 17 Watt Led Light Kit With Bulb Included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
