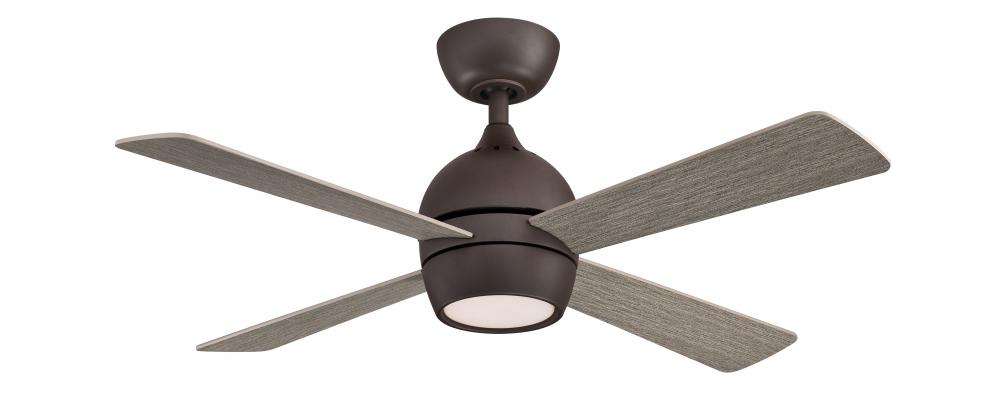

Kwad - 44 Inch - GR with Light (FP7644GR)
by Fanimation
Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
3533 Cubic Feet per Minute
Electricity Rate
44 Watts (excluded lights)
Airflow Efficiency
80 Cubic Feet Per Minute Per Watt
Product Specification
Item #
FP7644GR
Dimensions
Height: 15.05"
Width: 44.00"
Length: 44.00"
Additional product details
Vendor Item #
FP7644GR
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Gray
, Miscellaneous
Style
Traditional
Option
Dry Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
4 Blades
Location Rating
Dry Rated
Wattage
18w
Category
Fan-Uni
Finish
Matte Greige
Option
Dry Rated
Family
Kwad 44
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch - fan speed, light and sleep timer functions
, 3533 CFM on High
, Limited Lifetime Warranty
, Set of 4 blades with multiple finish options and 18 watt LED light kit included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
3533
Air Flow Efficiency
80
Amperage
0.37
Blade Finish
Weathered Wood
Blade Pitch
12
Bulb Type
18 Watt LED Module
Canopy
6.5 Dia x 2.58 H
Diameter
8.4
Down Rod Included
4.5
Electricity Used
44
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
44
Light Kit Included
Yes
Lumens / Light Output
1500
Material
Wood
Motor Fan Speed
3
Motor RPM
195
Motor Size
153 X 13
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.12
Ship Carton Length
25.91
Ship Carton Width
10.87
Ship Weight
16.69
Sold By
Each
Warranty
Limited Lifetime
Weight
14.77
Airflow Efficiency Low
147
Airflow Efficiency Medium
105
Avg Airflow Efficiency
88
Avg CFM Energy
2579
Avg Energy Use Watts
29
Avg Estimated Yearly Energy Cost
8
Avg Estimated Yearly Energy Cost on HIGH
12
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
No
Blade Sweep
44
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.5 Dia
Canopy Height
2.58 H
Cap Included
No
Carton Cubic Feet
1.65
Cartons Per Unit
1
Case Height
10.12
Case Length
25.91
Case Quantity
1
Case Weight Pounds
16.69
Case Width
10.87
CEC Uploaded
Yes
Ceiling To Blade Edge
12.27
Ceiling To Bottom
15.05
Ceiling to Bottom No LK
14.2
CFM Low
1497
CFM Medium
2633
Compatible Accessories
CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCB1-52
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin
China
CRI
90
Current Draw High
0.37
Current Draw Low
0.18
Current Draw Medium
0.28
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
8.4
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
44
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
4
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
195
RPM Low (II)
84
RPM Medium (IV)
140
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
10
Watts Medium
25
Watts Per Bulb
18
Manufactured By
Fanimation
Other Details:
- 3 Speed Ac Motor With Reverse Switch - Fan Speed, Light And Sleep Timer Functions
- 3533 Cfm On High
- Limited Lifetime Warranty
- Set Of 4 Blades With Multiple Finish Options And 18 Watt Led Light Kit Included
- Tr500 Handheld Remote With 23a Battery Included
- Wifi Or Bluetooth Compatible (required Controls Sold Separately)
