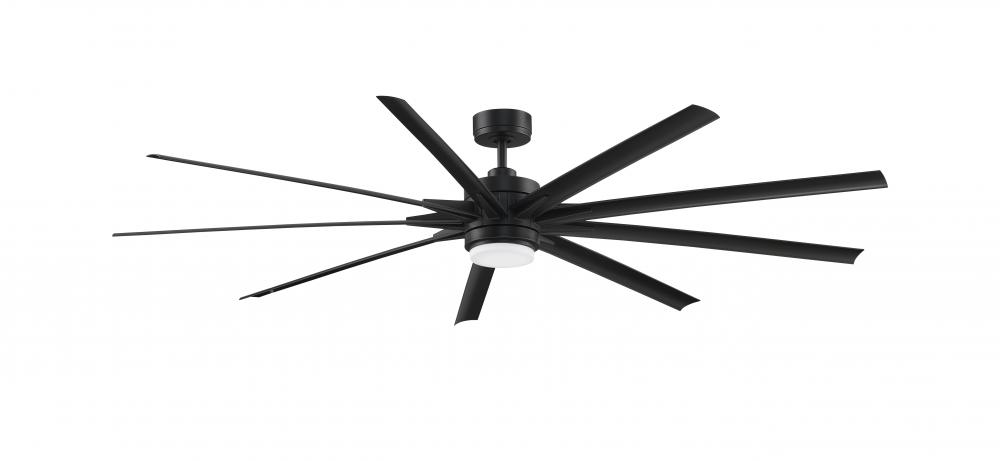

Odyn - 84 inch - BLW with BL Blades and LED Light Kit (FPD8159BLW)
by Fanimation
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
11293 Cubic Feet per Minute
Electricity Rate
34 Watts (excluded lights)
Airflow Efficiency
325 Cubic Feet Per Minute Per Watt
Product Specification
Item #
FPD8159BLW
Dimensions
Height: 22.64"
Width: 84.00"
Length: 84.00"
Additional product details
Vendor Item #
FPD8159BLW
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
Black
Style
Traditional
Option
Energy Star
, Wet Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
8+ Blades
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Uni
Finish
Black
Option
Wet
Family
Odyn 84
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
10,236 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air
, ENERGY STAR Most Efficient 2020
, Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included
, TR205 handheld remote with CR2032 batteries included
Air Flow CFM
11293
Air Flow Efficiency
325
Amperage
0.45
Blade Finish
Black
Blade Pitch
12
Blade Span
84
Bulb Type
18 Watt LED Module
Canopy
6.46 Dia x 2.58 H
Diameter
8.27
Down Rod Included
6
Electricity Used
34
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
84
Light Kit Included
Yes
Lumens / Light Output
1500
Material
Composite
Motor Fan Speed
16
Motor RPM
70
Motor Size
DC165NL
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
12.87
Ship Carton Length
40.08
Ship Carton Width
10.47
Ship Weight
38.5
Sold By
Each
Warranty
Limited Lifetime
Weight
34.73
Airflow Efficiency Low
1181
Airflow Efficiency Medium
627
Avg Airflow Efficiency
399
Avg CFM Energy
9916
Avg Energy Use Watts
25
Avg Estimated Yearly Energy Cost
7
Avg Estimated Yearly Energy Cost on HIGH
10
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
84
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.46 Dia
Canopy Height
2.58 H
Cap Included
Yes
Carton Cubic Feet
3.13
Cartons Per Unit
1
Case Height
12.87
Case Length
40.08
Case Quantity
1
Case Weight Pounds
38.5
Case Width
10.47
CEC Uploaded
Yes
Ceiling To Blade Edge
18.2
Ceiling To Bottom
22.33
, 22.64
CFM Low
4630
CFM Medium
8460
Compatible Accessories
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Compatible Wall Controls
TW306
Country of Origin
China
CRI
90
Current Draw High
0.46
Current Draw Low
0.07
Current Draw Medium
0.2
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
12
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.27
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
Yes
Max Ceiling Slope
27
Max Watt
35
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
9
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
69
RPM Low (II)
29
RPM Medium (IV)
50
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
4
Watts Medium
14
Watts Per Bulb
18
Wet Rated
Yes
Manufactured By
Fanimation
Other Details:
- 10,236 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
- Energy Star Most Efficient 2022
- Set Of (9) 84 Inch Wet Rated Blades And 18 Watt Led Cct Select Light Kit With Cover And Bulb Included
- Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
