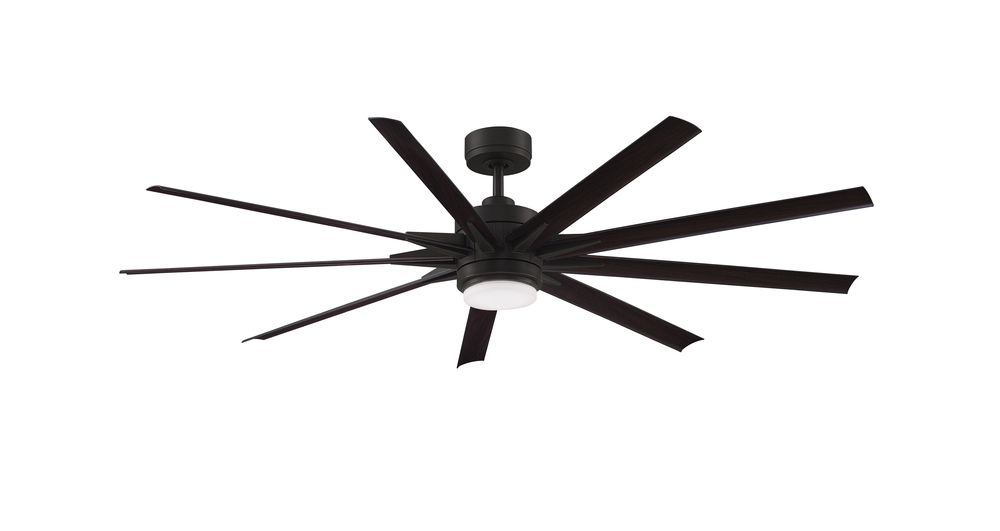

Odyn Custom Motor - DZW with LED Light Kit (MAD8152DZW)
by Fanimation
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
8741 Cubic Feet per Minute
Electricity Rate
34 Watts (excluded lights)
Airflow Efficiency
329 Cubic Feet Per Minute Per Watt
Product Specification
Item #
MAD8152DZW
Dimensions
Height: 22.64"
Width: 56.00"
Length: 56.00"
Additional product details
Vendor Item #
MAD8152DZW
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Bronze
Style
Traditional
Option
Energy Star
, Wet Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
8+ Blades
Subfinish
Dark Bronze
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Multi
Finish
Dark Bronze
Option
Wet
Family
Odyn Custom
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
18 watt LED light kit with cover and bulb included; Set of 9 Wet Rated blades with multiple finish o
, 8813 CFM on High
, Compatible with most Smart home devices (required controls sold separately)
, DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and
, ENERGY STAR Most Efficient 2020
, TR205D handheld remote with CR2032 batteries included
Air Flow CFM
8741
Air Flow Efficiency
329
Amperage
0.44
Blade Pitch
12
Bulb Type
18 Watt LED Module
Canopy
6.46 Dia x 2.58 H
Diameter
8.27
Down Rod Included
6
Electricity Used
34
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
56, 64, 72
Light Kit Included
Yes
Lumens / Light Output
1500
Max Length
72
Max Width
72
Motor Fan Speed
16
Motor RPM
84
Motor Size
DC165NM
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
10.91
Ship Carton Length
27.48
Ship Carton Width
14.8
Ship Weight
28.89
Sold By
Each
Warranty
Limited Lifetime
Weight
25.91
Airflow Efficiency Low
978
Airflow Efficiency Medium
581
Avg Airflow Efficiency
347
Avg CFM Energy
7476
Avg Energy Use Watts
22
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
8
Blade Reversible
No
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.46 Dia
Canopy Height
2.58 H
Cap Included
Yes
Carton Cubic Feet
2.57
Cartons Per Unit
1
Case Height
10.91
Case Length
27.48
Case Quantity
1
Case Weight Pounds
28.89
Case Width
14.8
CEC Uploaded
Yes
Ceiling To Blade Edge
18.46
Ceiling To Bottom
22.33
, 22.64
CFM Low
3138
CFM Medium
6086
Compatible Accessories
CCK8002DZW, DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCB1-52
Compatible Blades
BPW8152-56BLW, BPW8152-56BNW, BPW8152-56DWAW, BPW8152-56MWW, BPW8152-56WEW, BPW8152-64BLW, BPW8152-64BNW, BPW8152-64DWAW, BPW8152-64MWW, BPW8152-64WEW, BPW8152-72BLW, BPW8152-72BNW, BPW8152-72DWAW, BPW8152-72MWW, BPW8152-72WEW
Compatible Wall Controls
TW306
Country of Origin
China
CRI
90
Current Draw High
0.36
Current Draw Low
0.06
Current Draw Medium
0.16
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
12
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.27
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
Yes
Max Ceiling Slope
27
Max Watt
27
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
9
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
78
RPM Low (II)
29
RPM Medium (IV)
56
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
3
Watts Medium
10
Watts Per Bulb
18
Wet Rated
Yes
Manufactured By
Fanimation
Other Details:
- 18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (9) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
- 8813 Cfm On High
- Compatible With Most Smart Home Devices (required Controls Sold Separately)
- Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
- Energy Star Most Efficient 2022
- Tr305 Handheld Remote With 23a Battery Included
